Secure buzzer and cable to insulation panel
Courtesy of VOLVO CARS OF NORTH AMERICA.
- Set the buzzer to the loudest volume. Turn the outer section in relation to the inner section until the existing marks are opposite each other

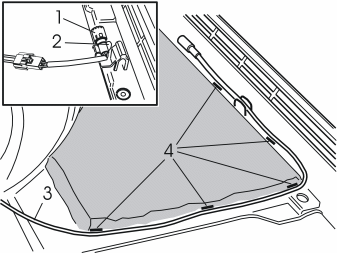

- Lock in position using a piece of tape. Take the buzzer (1) and the clip (2) and secure them at the edge on top of the inside of the panel. See Fig 1
- Connect the two-pin cable (3) from the control module to the cable for the buzzer
- Secure the cable around the insulation panel. Use pieces of butyl tape (4), as illustrated
