Reverse warning system
>>
Drill through pre drilled holes in foam
Drill through pre drilled holes in foam

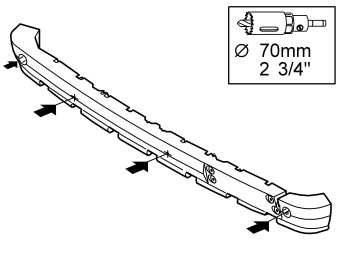

Fig 1: Identifying Hole Locations And Hole Saw Drill Bit Diameter
Courtesy of VOLVO CARS OF NORTH AMERICA.
Drill through the four pre drilled holes in the foam. Use the
70 mm (2 3/4")
diameter hole saw.
