Remove clip and insulation panel

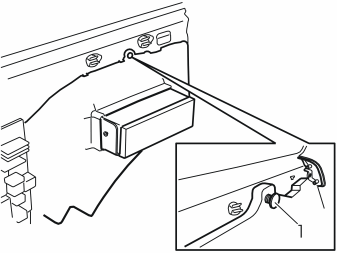

Fig 1: Identifying Clip

GLL149309

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the clip (1).
Remove the insulation panel.
