Remove headlamp wiper, molding and trim

Fig 1: Identifying Headlamp Washer

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carry out the following on the left and right-hand sides of the car

• Disconnect the headlamp washer hose at the joint (1)
• Remove the headlamp wiper arm by removing the nut (2) under the cover and pulling it off.

Fig 2: Identifying Over Rider Molding Removal From Bumper With Weatherstrip Tool

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carry out the following on the left and right-hand sides of the car

• Remove the trim strip on the bumper by prying it off at one end using a weatherstrip tool. Then carefully pull the trim strip off.

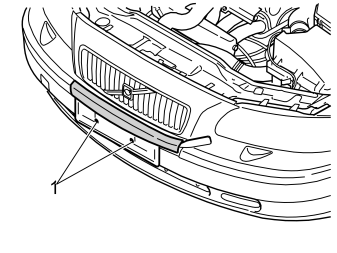

Fig 3: Identifying License Plate Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the number plate by prying out the bottom of the molding and removing it
• Remove the two screws (1) on the number plate holder. Remove the number plate holder
• Remove the center trim strip on the bumper by prying it off at one end using a weatherstrip tool, and then carefully pulling it off.
