Installing siren

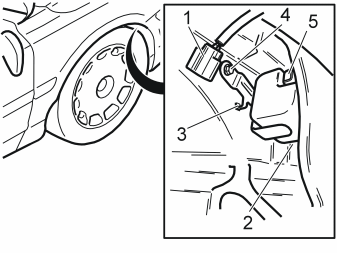

Fig 1: Identifying Alarm And Connecting Existing Connector To Alarm Connector

GLL104268

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carry out the following on the right-hand side of the car

Disconnect the existing connector (1) from the clip
Install the siren in the front (2) and rear (3) guide hole
Install the screw (4) in the siren mounting
Connect the existing connector (1) to the siren connector (5).
