Install fuses, program software and check function of alarm

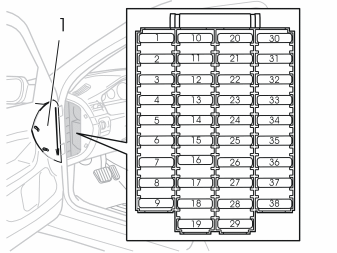

Fig 1: Identifying Left-Hand Side Cover Of Dashboard

GLL104079

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the cover (1) on the left-hand side of dashboard
Install a 5 A fuse:
in terminal 29 for cars up to and including model year -00.

in terminal 38 for cars from model year 01-04 inclusive.

Cars from model year 05 have this fuse fitted.
Program the software. See the service information in VADIS/VIDA.
Check the function of the alarm.
