Remove cover

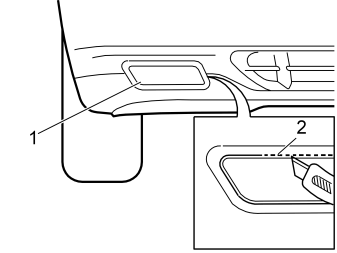

Fig 1: Cutting Out Embossed Covers

GLL107362

Courtesy of VOLVO CARS OF NORTH AMERICA.

Raise the car
Cut out the embossed covers (1) on the left and right-hand side of the bumper.

NOTE:

Cut around the outer (2) marking.

Score around the marking
Carefully cut through the material
Remove the cover. Sand the edges if necessary.
