Removing the bumper cover

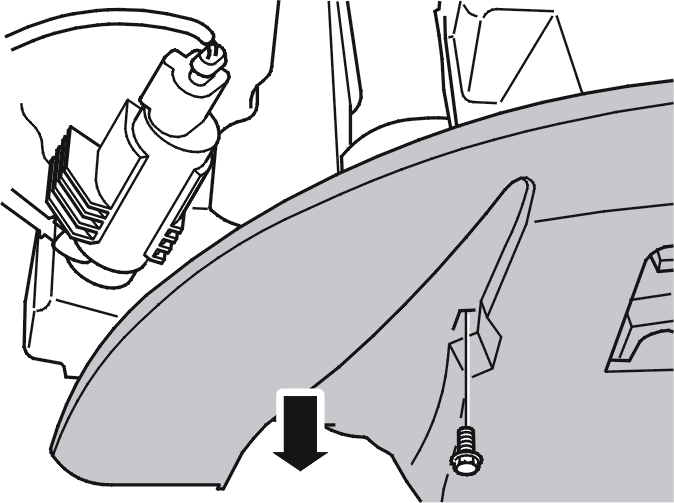

Fig 1: Identifying Air Baffle Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the casing for the front bumper. See: Bumper front, replacing
• the screw for the air baffle
• the air baffle.

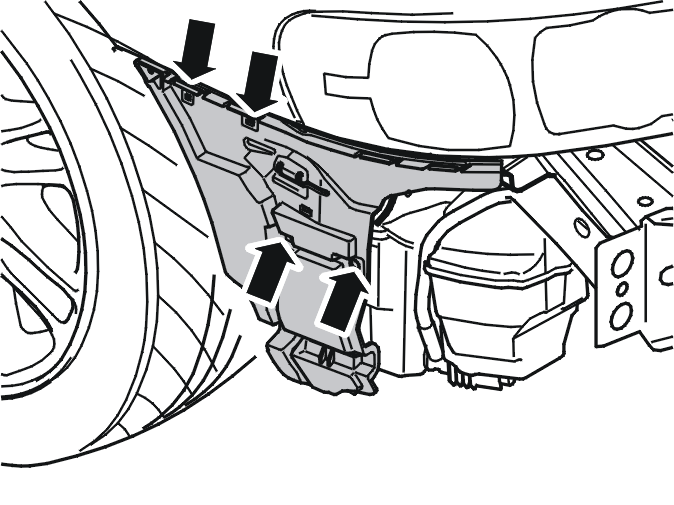

Fig 2: Identifying Bumper Guide

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the 4 screws from the bumper guide.
