Rear Suspension - Up To Early Production 2004: Description

S40 and V40 models use a multi-link rear suspension. See Fig 1.

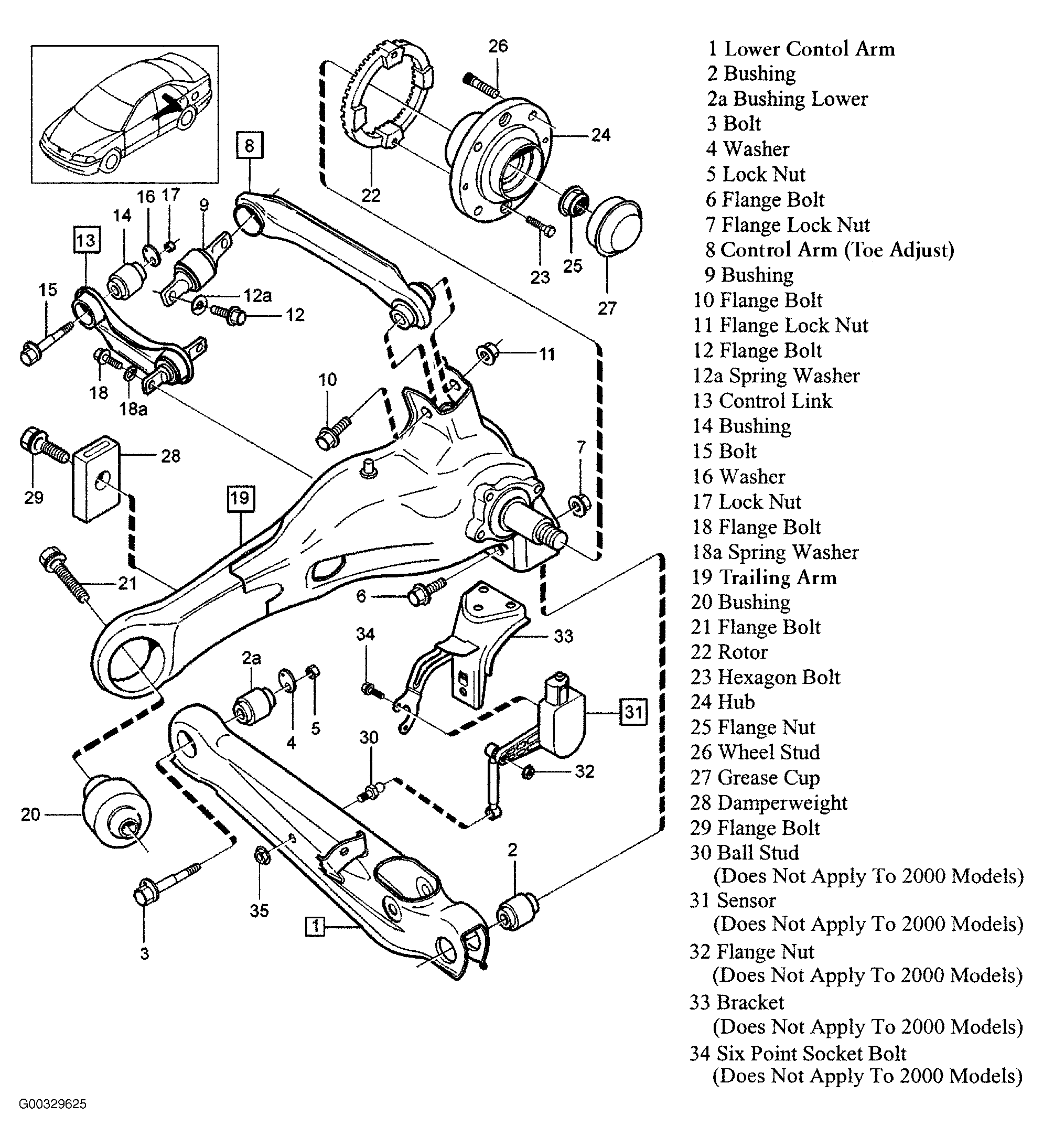

Fig 1: Exploded View Of Rear Suspension Assembly

Courtesy of VOLVO CARS OF NORTH AMERICA.
