Checking the signal cable

Fig 1: Identifying Ignition OFF

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Ignition off.

  Connect a voltmeter between engine cooling fan (FC) relay base terminal #2 and ground.

  Fig 2: Identifying Ohmmeter

  Courtesy of VOLVO CARS OF NORTH AMERICA.

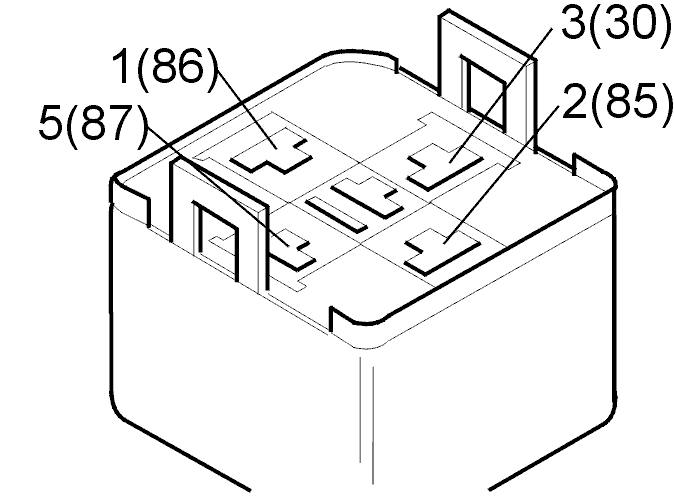

  Fig 3: Identifying System Relay Base Connector Terminals

  Courtesy of VOLVO CARS OF NORTH AMERICA.

The ohmmeter should read infinite resistance.

• OK

  Refer to Checking the engine cooling fan (FC) relay

• NOT OK

  Refer to Checking the signal cable

Fig 1: Identifying Ignition OFF

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Ignition off.

  Check the cable between engine cooling fan (FC) relay terminal #2 and engine control module (ECM) connector terminal #8 for an open-circuit according to Open-circuit, permanent faults .

  Remedy as necessary.

  Fig 2: Identifying System Relay Control Connector Terminals

  Courtesy of VOLVO CARS OF NORTH AMERICA.
  Fig 3: Identifying Ohmmeter

  Courtesy of VOLVO CARS OF NORTH AMERICA.
  Fig 4: Identifying EMS2000

  Courtesy of VOLVO CARS OF NORTH AMERICA.

• Continue

  Refer to Verification

Check the cable between engine cooling fan (FC) relay base terminal #2 and engine control module (ECM) connector terminal #8. Check for a short-circuit to ground according to Short-circuit to ground, permanent faults .

Remedy as necessary.

Fig 1: Identifying System Relay Control Connector Terminals

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Identifying Ohmmeter

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Identifying EMS2000

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Continue

  Refer to Verification
