Tool, connecting

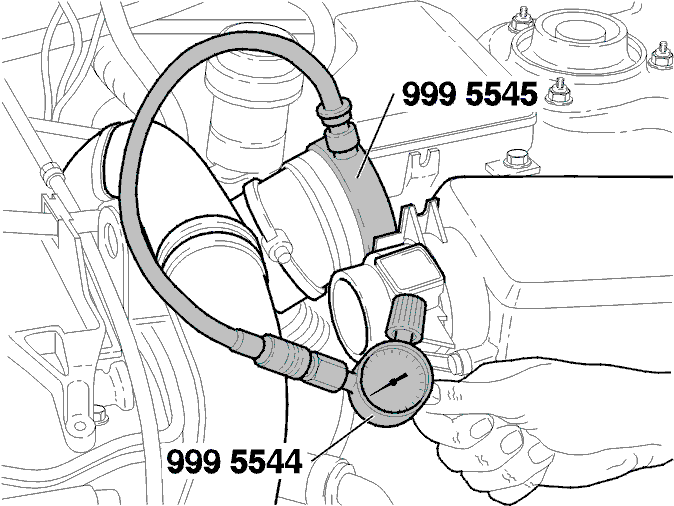

Fig 1: Disconnecting/Connecting Tool 999 5545 And Pressure Regulator 999 5544 From/To Fresh Air Intake Hose
- Disconnect the fresh air intake hose from the mass air flow (MAF) sensor
- Connect special tool 9995545 and pressure regulator 9995544 to the remove hose. Tighten the hose clamp
- Use a hose clip to seal the crankcase ventilation hose
- Remove the oil filler cap
- Disconnect the lower hose from the canister purge (CP) valve.
