Removing soundproofing

Remove the soundproofing on the driver's side. See: Soundproofing panel, replacing  (S80).

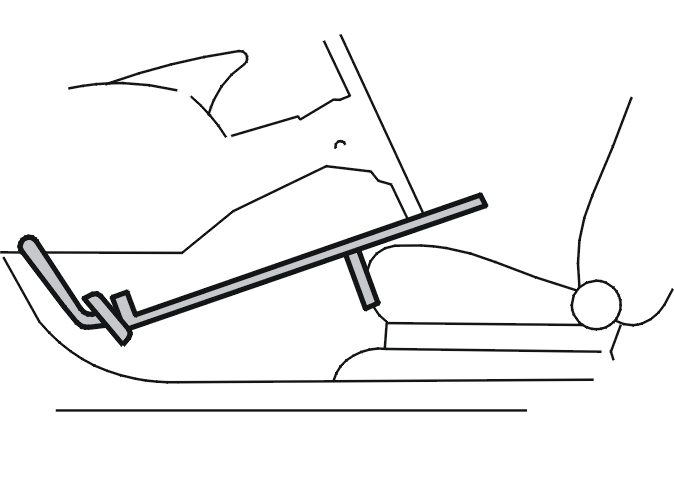

Fig 1: Brake Pedal Locked In Depressed Position Using A Pedal Jack
GLL150523Courtesy of VOLVO CARS OF NORTH AMERICA.

Lock the brake pedal in the depressed position. Use a pedal jack.
