Checking components and wiring: Overview
CAUTION:
Do not apply rust solvent spray or grease to the heated oxygen sensor (HO2S) connector.

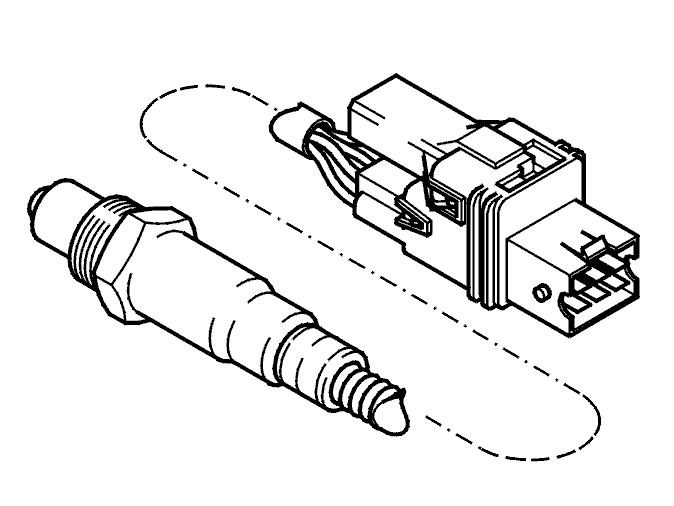

Check the signal cable (+) between heated oxygen sensor (HO2S) terminal #1 and control module terminal #A43 (A#43). Check the cable for pump current between heated oxygen sensor (HO2S) terminal #6 and control module terminal #A25 (#A25). Check for an open-circuit, short-circuit to ground and a short-circuit to supply voltage.
Try a new heated oxygen sensor (HO2S) if the wiring is OK.
Remedy as necessary.
HINT: If the fault remains after fault-tracing, it may indicate that the fault is in the circuit for the rear heated oxygen sensor (HO2S).
Other information
- To connect the breakout box and access the control module, see Connecting the breakout box
- To access or replace the heated oxygen sensor (HO2S), see Heated oxygen sensors (HO2S), replacing
- For information about signals:
- For 6 cylinder engines -2001, see Signal specification
- For 6 cylinder engines 2002-, see Signal specification
- For 6 cylinder engines -2004, see Signal specification
- For 6 cylinder engines 2005-, see Signal specification .
- See Contents .
- Continue
Refer to Verification
