Removing the cross members from the body

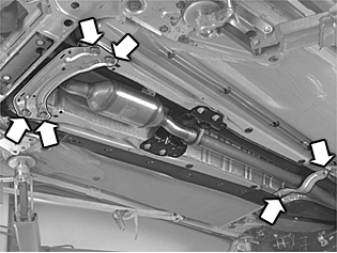

Fig 1: Identifying Crossmembers

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the screws for the front cross member
• the brake pipe from the holders
• the rear member. Remove one screw and loosen it. Then turn the member to the side, in order to access the exhaust pipe.
