Removing the left-hand drive shaft

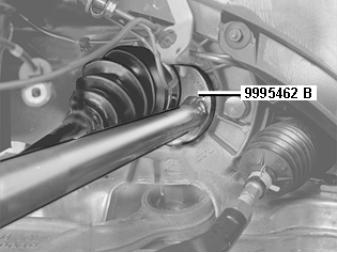

Fig 1: Identifying Drive Shaft At Transmission & Tool 999 5462

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fold out the spring strut. Remove the drive shaft from the wheel hub.

Hold the spring strut to one side using a retaining strap to obtain more space when removing the transmission.

Remove the drive shaft from the transmission. Use: 9995462 .

Install: 9995488 for the transmission.
