Transmission - Removal, Replacement And Installation - 2 Of 2
>>
Transmission, Manual (B5244T5, M66; 2005-2008)
>>
Transmission, Removing
>>
Removal
>>
Removing the engine and transmission screws
Removing the engine and transmission screws

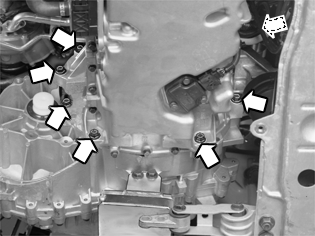

Fig 1: Identifying Engine And Transmission Screws
Courtesy of VOLVO CARS OF NORTH AMERICA.
Remove the remaining 7 screws for the transmission and engine.
Courtesy of VOLVO CARS OF NORTH AMERICA.
