Removing engine compartment components

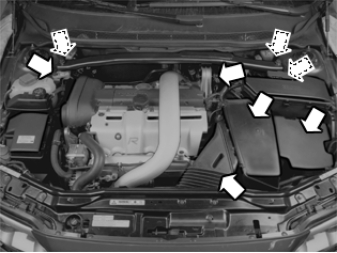

Fig 1: Identifying Engine Compartment Covers

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the engine stabilizer brace between the suspension turrets and the engine
• the cover on the side of the air cleaner (ACL) housing
• the fresh air intake hose
• the air filter housing complete, unhook the control valve from the air filter housing.
