Transmission - Removal, Replacement And Installation - 2 Of 2
>>
Transmission, Manual (B5244T5, M66; 2005-2008)
>>
Transmission, Installing
>>
Installation
>>
Installing the rear engine mounting
Installing the rear engine mounting

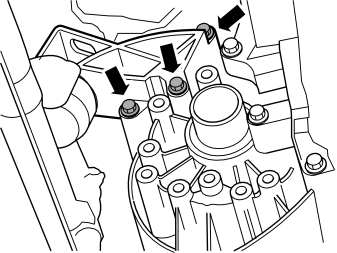

Fig 1: Identifying Rear Engine Mounting Screws
Courtesy of VOLVO CARS OF NORTH AMERICA.
Install:
the rear engine mounting for the transmission to the engine mounting. Use 3 x M10 screws. Tighten.
Courtesy of VOLVO CARS OF NORTH AMERICA.
