Installing engine compartment components

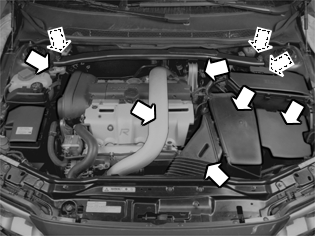

Fig 1: Identifying Engine Compartment Covers

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the engine stabilizer brace between the wheel arches. Use 4x M10 screws. Tighten
• 1 x M12 screw for the engine stabilizer brace/engine mounting. Tighten
• the air cleaner (ACL) housing to the intake manifold and connections. Hook the valve onto the air cleaner (ACL) housing
• the fresh air intake hose
• the cover on the side of the air cleaner (ACL) housing.

Fill with coolant. Carefully check while reaching operating temperature or test driving that the level remains the same and that there is no leakage.
