Installing components for the transmission

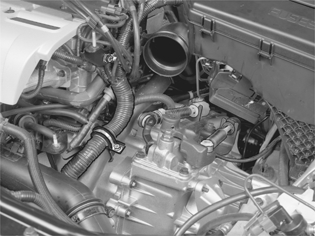

Fig 1: Identifying Transmission Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the bracket for the engine coolant hose and cable harness
• the bracket for the cable harness clamp and the mounting for the heated oxygen sensor (HO2S) connector at the rear edge of the transmission
• the clamp for the cable harness at the rear edge of the engine
• the connector for the back-up lamp switch
• the mechanical transmission cables to the transmission. Adjust. See: Transmission cables, replacing .
• selector cables to levers.
