Removing the transmission cable

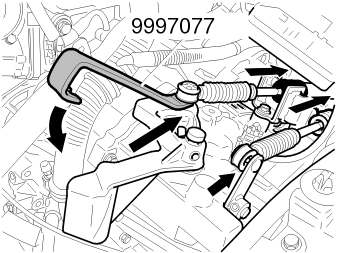

Fig 1: Identifying Shift Cable At Shift Lever & Tool 999 7077

GLL106593

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the shift cable at the shift lever using 9997077 .
