Installing the new primary shaft seal

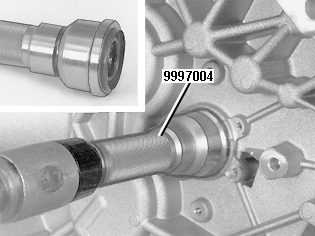

Fig 1: Identifying Primary Shaft Seal & Drift Tool 999 7004

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lubricate the lip of the primary shaft seal. Use grease, P/N 1161241-3.

Use the drift 9997004 when installing the primary shaft seal.

Pull the sliding drift sleeve forward. Press the seal into place.

Guide drift on primary shaft. Tap in the seal until the sliding drift sleeve is against the gearbox and in the rear sleeve position.
