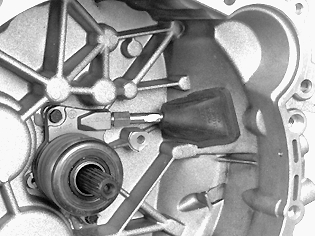

Installing the clutch cylinder
Tighten the screws. Tighten to 10 Nm .
Thread the rubber seal onto the pipe with the boot turned towards the clutch cylinder.
Remove the protective plug. Install the junction. Always use a new quick-release connector with a rubber seal.
Lubricate the rubber seal using a drop of brake fluid. This facilitates joining.
Press the pipe into the junction. Lock the pipe using the clip.
