Transmission - Removal, Replacement And Installation - 2 Of 2
>>
Transmission, Automatic (TF-80SC AWD; 2006-2007)
>>
Solenoid Control System, Replacing
>>
Removal
>>
Removing Control System Cover
Removing Control System Cover
Remove the cover over the control system. See:
Cover control system, replacing
.

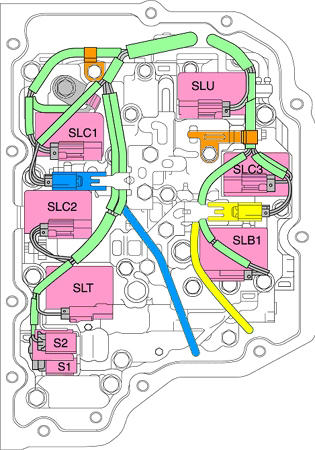

Fig 1: Identifying Cable Harness
Courtesy of VOLVO CARS OF NORTH AMERICA.

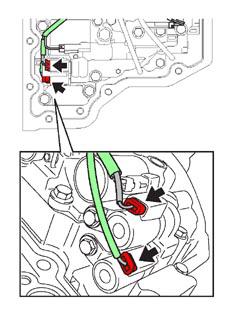

Fig 2: Identifying Connector
Courtesy of VOLVO CARS OF NORTH AMERICA.

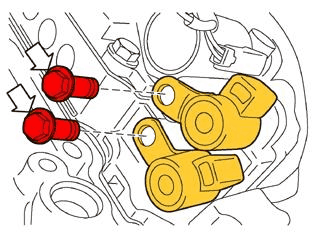

Fig 3: Identifying Bolts
Courtesy of VOLVO CARS OF NORTH AMERICA.
S1, S2
