Sealing Ring Gear Shift Linkage Rod, Replacing: Removing/Installing

Remove/install the transmission control module (TCM). See: Transmission control module (TCM), replacing .

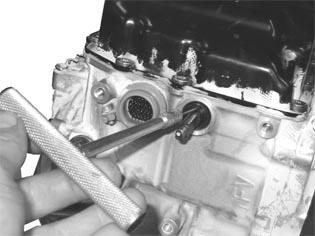

Fig 1: Identifying Seal Pinion Pulled/Positioned

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use: 9995919 .

Fig 2: Identifying Punch Installation

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use: 9995476 .
