Installing the gearbox

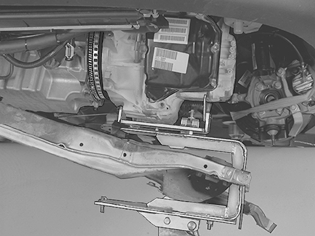

Fig 1: Identifying Height And Angle Adjusted With Mobile Jack And Gearbox Fixture

Courtesy of VOLVO CARS OF NORTH AMERICA.

Before installing the transmission it is very important that the checks and cleaning have been carried out. See: Transmission, preparations before installing .

Adjust for height and angle using the mobile jack and the gearbox fixture.

Align the gearbox against the engine.

NOTE:

Make sure that the gearbox goes straight in relation to the engine and that the guide sleeves and locating pin for the starter motor fit into the guide holes on the gearbox.
