Installing gear selector cable

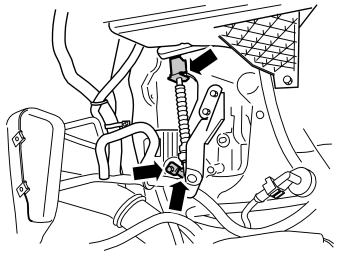

Fig 1: Identifying Gear Selector Cable, Lever & Control Unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the gear selector cables with the bracket, 2 x M8. Tighten.

Connect the cable to the lever.

Connect the transmission connector.
