Fitting the remaining screws to the gearbox/starter motor

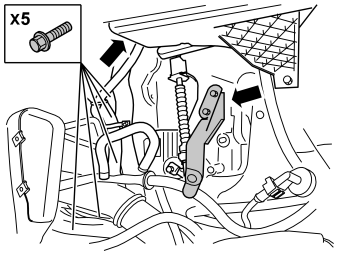

Fig 1: Identifying Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the screws, 3 x M10, to the gearbox/engine. Tighten
• the screws for the starter motor. Tighten.
• the bracket to the coolant hose-cable harness
• the bracket to the cable harness clamp and the bracket for the heated oxygen sensor (HO2S) connectors in the rear edge of the gearbox
• the clamp to the cable harness at the rear edge of the engine
• the bracket for the air cleaner (ACL), 2 x M10. Tighten.
