Removing level plug/draining plug

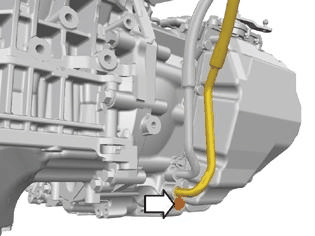

Fig 1: Identifying Transmission Fluid Level Plug

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the integrated level plug/Torx.

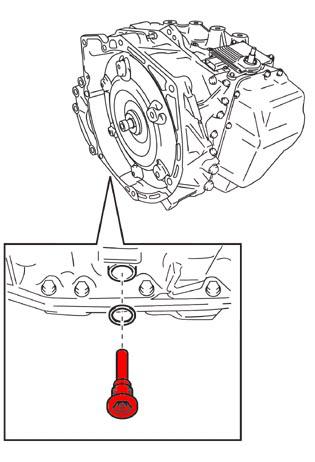

Fig 2: Identifying Transmission Draining Plug

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the draining plug.

When the transmission is empty:

• use new  gaskets
• lubricate the gaskets. Use ATF-oil
• tighten both. See: Summary of tightening torques for specific components .

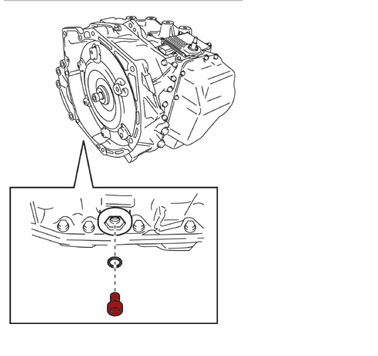

Fig 3: Locating Plastic Plug In Drain Hole

Courtesy of VOLVO CARS OF NORTH AMERICA.

HINT: To prevent leakage, install a plastic plug in the hole.
