Removing the left-hand drive shaft

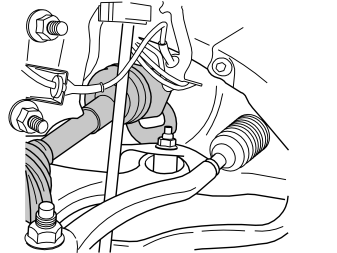

Fig 1: Identifying Drive Shaft
GLL151351Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the drive shaft from the transmission. Use: 9997160 . Tap in the tool between the drive shaft and the transmission to detach the drive shaft.
