Control System, Replacing: Installation: Notes

NOTE:

For tightening torques, see: Tightening torque .

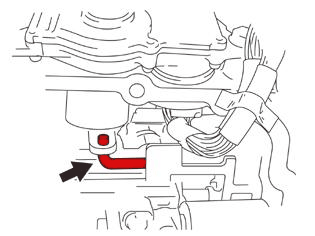

Fig 1: Identifying Control System Rod

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION:

Ensure that the cable harness is not trapped when the control system is positioned.

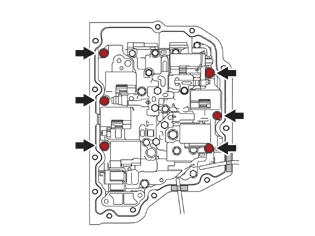

Fig 2: Identifying Transmission Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lightly tighten.

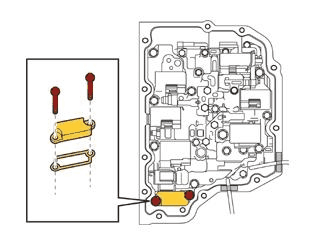

Fig 3: Identifying Gasket & Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use new screws and a new gasket.

Lightly tighten.

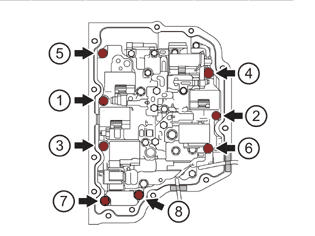

Fig 4: Identifying Transmission Bolts Installation Sequence

Courtesy of VOLVO CARS OF NORTH AMERICA.

Tighten alternately, M6.
