Replacing And Checking Solenoids: Finishing

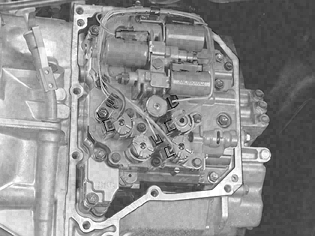

Fig 1: Identifying Solenoid Connectors
GLL109421Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the connectors to the solenoids.
