Replacing The Sealing Ring For The Gear Shift Linkage Rod

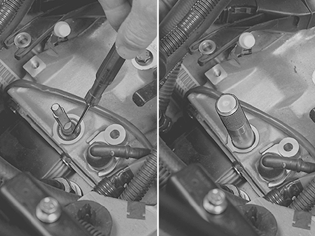

Fig 1: Removing Sealing Ring Using Small Rounded Off Screwdriver

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the old sealing ring. Use a small rounded off screwdriver.

Take care not to damage the rod.

Smear a little automatic transmission fluid on the new sealing ring. Install the ring. Use drift 9995476 .
