Removing The Gear-Shift Position Sensor From The Gear Shift Linkage Rod

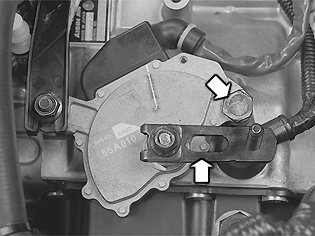

Fig 1: Identifying Gear-Shift Position Sensor

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the lever
• the nut, lock washer and rubber seal from the gear-shift position sensor
• the nut for the cable duct. Lift the cable duct to one side
• the two screws for the gear-shift position sensor.

Carefully lift the sensor off the gear shift linkage rod.
