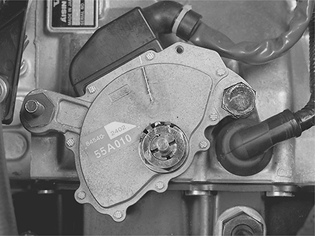

Installing The Gear-Shift Position Sensor
Courtesy of VOLVO CARS OF NORTH AMERICA.
Tighten the sensor screws lightly.
Install the rubber washer, lock washer and the nut on the gear shift linkage rod connection.
Tighten the nut.
Lock the nut with the lock washer.
