Installing a new sealing ring on the oil pump

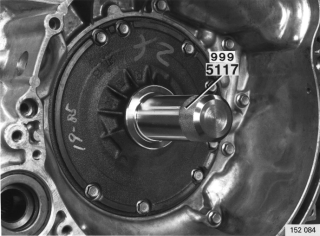

Fig 1: Identifying Sealing Ring Drift & Oil Pump
GLL108698Courtesy of VOLVO CARS OF NORTH AMERICA.

Use drift 9995117 .

NOTE:

Drift 9995117 has been modified according to the Workshop Guide.
