Removing The Rear Engine Mounting

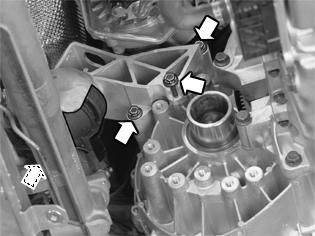

Fig 1: Identifying Engine Pad/Steering Gear Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the screw for the engine pad / steering gear
• the 3 screws. Remove the mounting and engine pad.
