Lowering The Sub-Frame

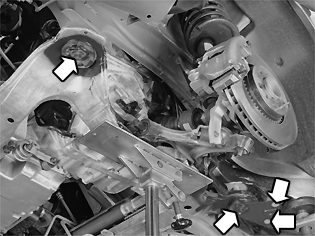

Fig 1: Identifying Sub-Frame And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the mobile jack lightly applied under the left side of the sub-frame.

Remove the sub-frame screws.

NOTE:

When lowering ensure that the screws for the steering gear release from the sub-frame. Ensure that the ball joint pinion releases from the control arm.

Remove the mobile jack and let the frame hang loose.
