Installing The Fixture On The Mobile Jack And Transmission

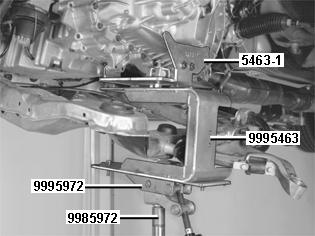

Fig 1: Identifying Fixture Installed On Mobile Jack And Transmission

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install transmission fixture 9995463 on fixture 9995972 . Position the unit on mobile jack 9985972 .

Align the fixture on the transmission using the 2 screws for the engine stabilizer brace. At the same time align support plate 5463-1 with the fixture and the transmission. Tighten the screws.

Apply the mobile jack lightly against the transmission.
