Detaching The Power Steering Line

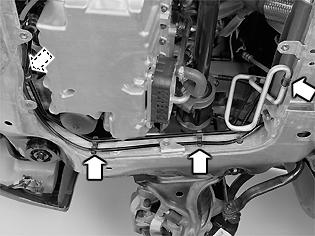

Fig 1: Identifying Power Steering Pipe, Evaporator Pipe And Holders

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screws and the clamps from the power steering line on the right-hand side of the sub-frame at the front and rear edges (applies to certain versions). Unhook the servo and the evaporator line from the holders on the right-hand side of the sub-frame.
