Installing components on the engine and subframe

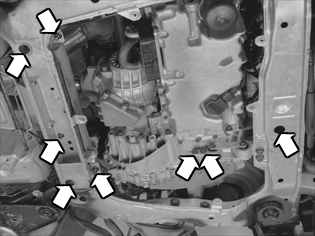

Fig 1: Identifying Steering Gear, Engine Pad And Engine Stabilizer Brace Bolts And Nuts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• new M10 lock nuts for the steering gear and the M10 screw. Tighten
• the M10 screw for the front engine pad. Tighten. Tighten the M10 screw for the rear engine pad
• the mounting for the engine stabilizer brace to the transmission. Use new screws. See Summary of tightening torques for specific components .
