Installing the primary shaft seal

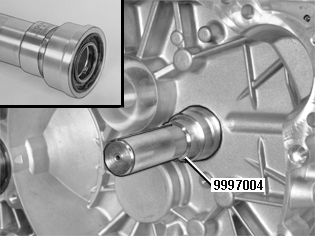

Fig 1: Identifying Drift Tool 999 7004

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lubricate the lip of the seal. Use grease, P/N 116 1241-3 (80 g).

Use drift 9997004 for installing the seal.

Pull the sliding drift sleeve forward. Press the seal into place.

Guide drift on primary shaft. Tap in the seal until the sliding drift sleeve is against the gearbox and in the rear sleeve position.
