Removing the gear shift lever

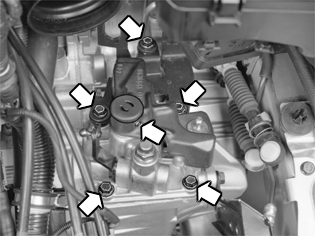

Fig 1: Identifying Gear Selector Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

When removing the gear selector, the lever must be in neutral (center position).

Remove:

• the bleed valve. Tap the pin out of the gear selector lever. Lift the gear selector lever off the shaft
• the screws for the bracket for the gear selector cables and the cover for the gear selector.
