Sealing rings connecting socket, replacing: Removal

Removing bevel gear

Remove the bevel gear according to: Bevel gear replacing .

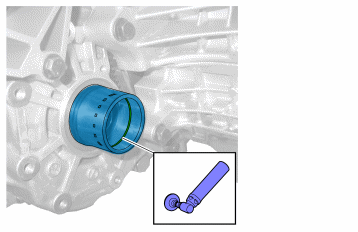

Fig 1: Identifying Removal Of Circlip From Connecting Socket

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carry out corrective action at worn splines in the sleeve

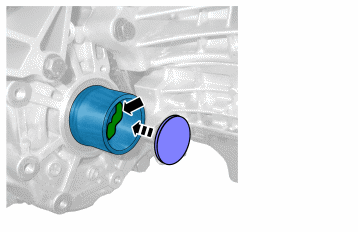

Fig 2: Identifying Pressing Cardboard Disc Against The Seal

Courtesy of VOLVO CARS OF NORTH AMERICA.

Cut out a Ø40 mm cardboard disc and use it to prevent metal shavings from entering the gearbox. Apply a thick bead of grease or petroleum jelly on the seal in the sleeve. Press the cardboard disc against the seal.

Fig 3: Identifying Grinding A Groove Inside Of The Sleeve

Courtesy of VOLVO CARS OF NORTH AMERICA.

Grind a groove in the inside of the sleeve to 9995777 secure the expander.

The sleeve can also be heated using a hot air gun or induction heater.

Fig 4: Identifying Expander 999 5777, Puller Rod 999 5777 And Extractor 999 5777

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install: 9995777 and 9995777 to 9995575 .

9995575 used with: 9995576 (foot operated).

Alternatively: 9992615 , which consists of puller cylinder and a compressed air powered hydraulic pump.

Fig 5: Identifying Sleeve 999 5777 Positioned Between Puller Cylinder And Transmission

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Place a container under the transmission.

Fig 6: Identifying Extracting Seal Using Special Tools, 999 7182 And 999 5069

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 7: Identifying Tapping Sealing Ring Out Of Socket Using Screwdriver

Courtesy of VOLVO CARS OF NORTH AMERICA.
