Filling with transmission oil, M58/M66

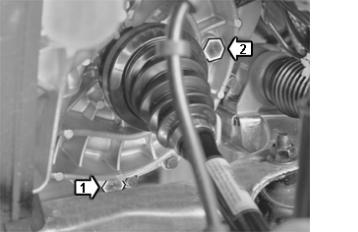

Fig 1: Identifying M66 Transmission Oil Plug
GLL109963Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the filler/level plug (2).

Fill oil.

Install the plug with a new gasket. Tighten to 35 Nm.
