Removing the pinion seal

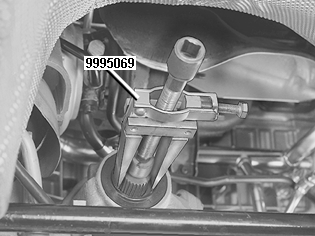

Fig 1: Identifying Removing Pinion Seal Using Puller 999 5069

GLL109847

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the pinion seal.

Use puller 9995069 .

NOTE:

Check that no seal residue is left from the old seal.
