Removing the nuts for the bevel gear flange

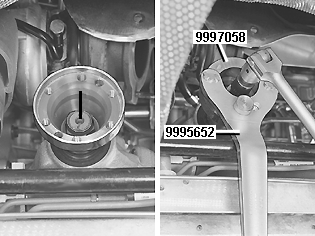

Fig 1: Identifying Flange Position & Nut Marked In Relation To Pinion Shaft End And Bevel Gear Flange Nuts, Tool 9995652 & Tool 9997058

Courtesy of VOLVO CARS OF NORTH AMERICA.

Mark the position of the flange and nut in relation to the pinion shaft end

Remove the nut.

Use counterhold 9995652 with adapter 9997058 .
