Checking the oil level in the bevel gear

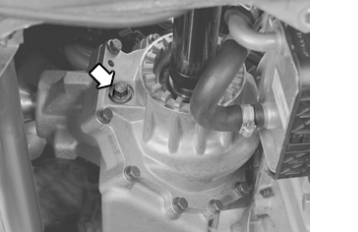

Fig 1: Identifying Bevel Gear Filler Plug

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check the oil level in the bevel gear.

Use correct oil. See:

Correct volume 650 ml.

oil up to the filler plug. Suck out 0.1 l oil.

Tighten, see: Tightening torque .
