Only RHD

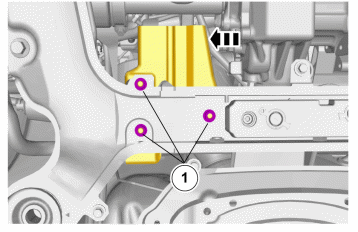

Fig 1: Identifying Collision Protection Nuts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the collision protection nuts, 3 pcs.

Press the collision protection towards the right-hand side of the vehicle.

Install new nuts. Torque tighten 50 Nm.

Fig 2: Identifying Rear Engine Pad Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove screws for the rear engine pad.

Fig 3: Identifying Raising Engine/Transmission

Courtesy of VOLVO CARS OF NORTH AMERICA.

Raise the engine/transmission using a mobile jack.
