Removing the sealing ring

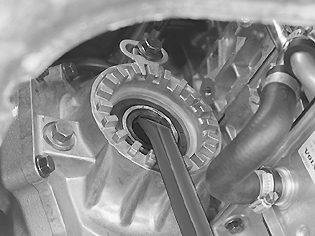

Fig 1: Identifying Removing The Sealing Ring

GLL109853

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lever the sealing ring off the crown wheel shaft.

Use a screwdriver or a jimmy bar.
